2 Ton Diesel Forklift Truck Manufacturer

Japanese Engine Diesel Counterbalance Forklift

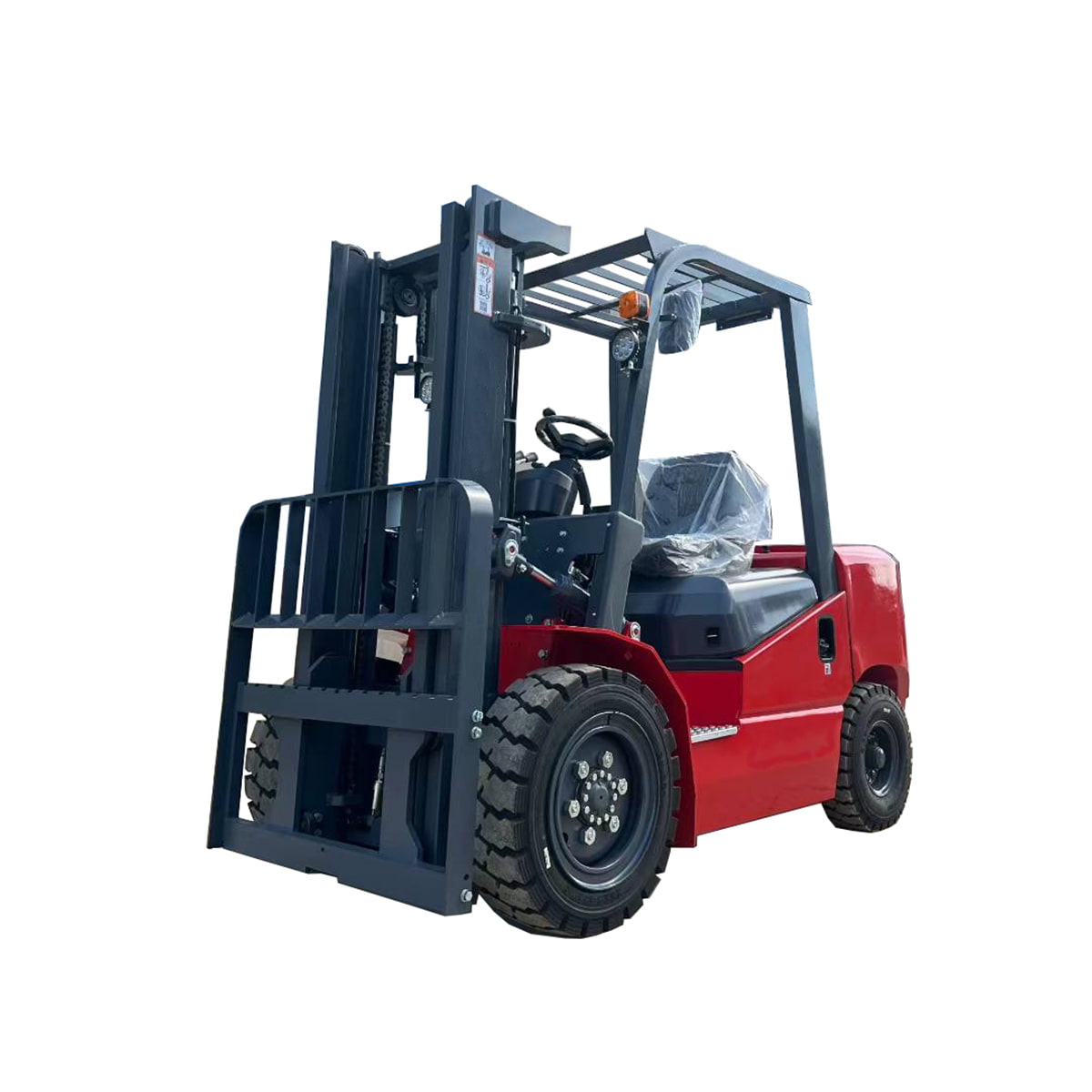

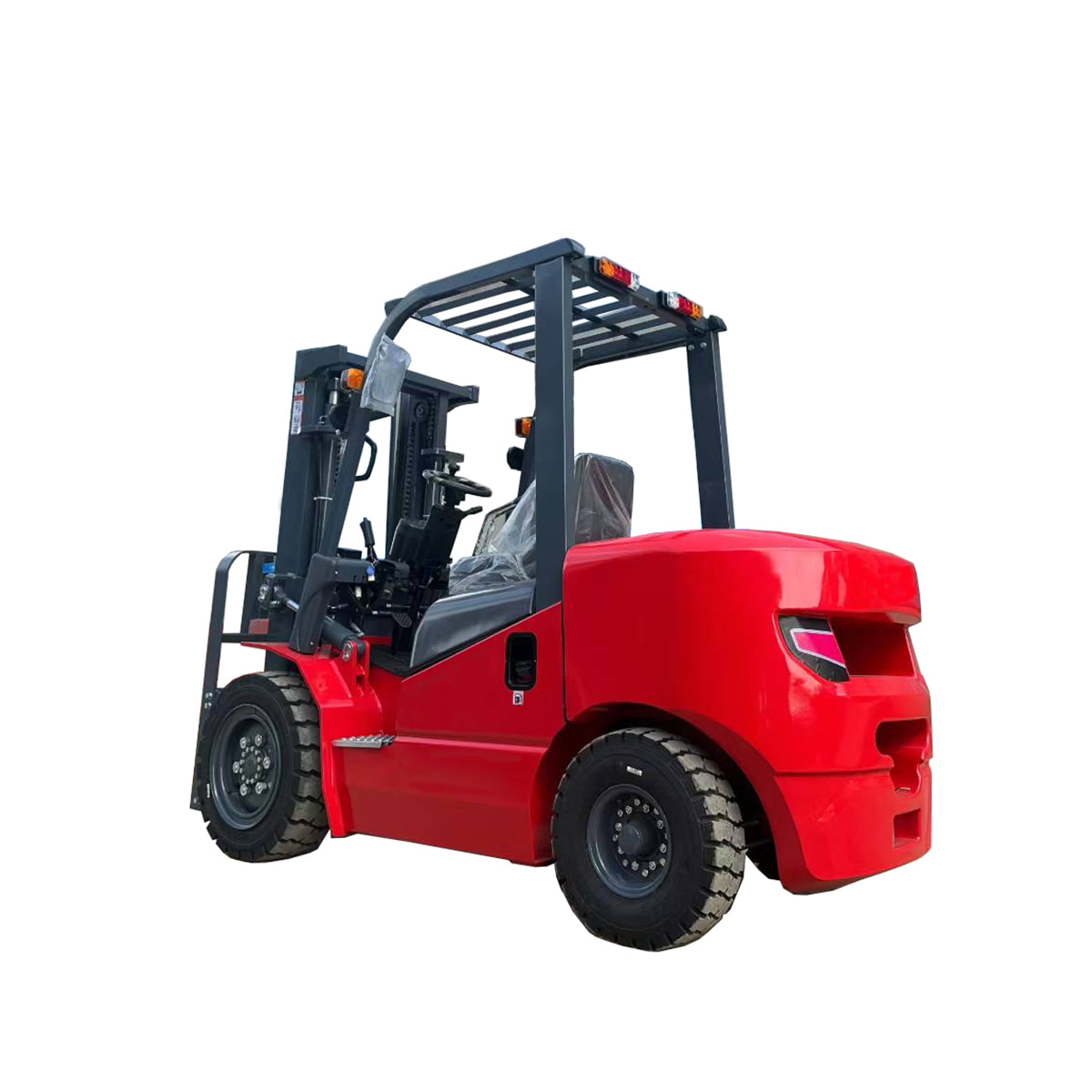

2.0-3.5 Ton Diesel Forklift Truck FD-H Series

FD20/25/30/35 Diesel Engine Forklift Trucks, Powerful, Durable, Versatile

Model No :
FD20/25/30/35
Yük Kapasitesi :
2000-3500kg
Mast :
Duplex/Triplex/Customization
Kaldırma Yüksekliği :
3000-8000mm
Bulaşma :
Mechanical/Hydraulic(Automatic)
Motor :
Xinchai/Isuzu/Mitsubishi
Application :
Logistics/Warehousing/Construction/Port
Color :
Yellow/Red/Customization
Minimum Sipariş Adedi :
1
Production Time :
7-15
Warranty :
18 Months Or 3000 Hours Whichever Comes First

ŞİMDİ SORUŞTUR

ÜRÜN TANITIMI
Parametre&Video

2.0-3.5 Ton Compact Diesel Forklift Trucks Standard Configuration

Full Hydraulic Power Steering	Adjustable Steering Wheel	Adjustable Seat	Two-Stage Wide-View Mast	Load Backrest
Overhead Guard	Canopy	Pneumatic Tire	LED Combination Headlight	LED Split Rear Taillight
Two-Piece Multi-Way Valve	Load Safety Valve	Lifting and Tilting Control Lever	Hydraulic Oil Dipstick	Reverse Buzzer
Double-Sided Rearview Mirror	1220mm Fork	Anti-Slip Pedal	Cable-Operated Handbrake	Electric Horn
Lifting Circuit Speed Limiting Valve	Tilting Circuit Self-Locking Valve	Multi-Functional Control Instrument	Upper and Lower Handrails	USB Charging Port

2.0-3.5 Ton Diesel Powered Forklift Manufacturer Optional Attachment

Side Shifter	Fork Positioner	Paper Roll Clamp	Rotable Clamp	Rotable Fork
Load Stabilizer	Drum Clamp	Bale Clamp	Carton Clamp	Tipping Fork
Push-Pull Device	Pole Fork	Crane Jib	Rotator	Customized Attachment

Deatails & Advantages

1) The door frame is widened to make the driver's vision more open. The door frame using CJ steel, which is durable and safe for driving.

2) Using digital stepping instrument panel and CAN bus communication technology, display more intuitive, high man-machine interaction, real-time monitoring of the state of the machine.

3) The side roller is above the main roller. When the shelf is raised to a higher position, the left-right shaking amplitude is greatly reduced, which improves the stability of high position operation and reduces the bearing failure rate.

4) Ergonomically designed tilt angle adjustable small diameter steering wheel (φ300) with good feel and reduced operator fatigue intensity.

Isuzu Engine Powered Diesel Forklift Trucks

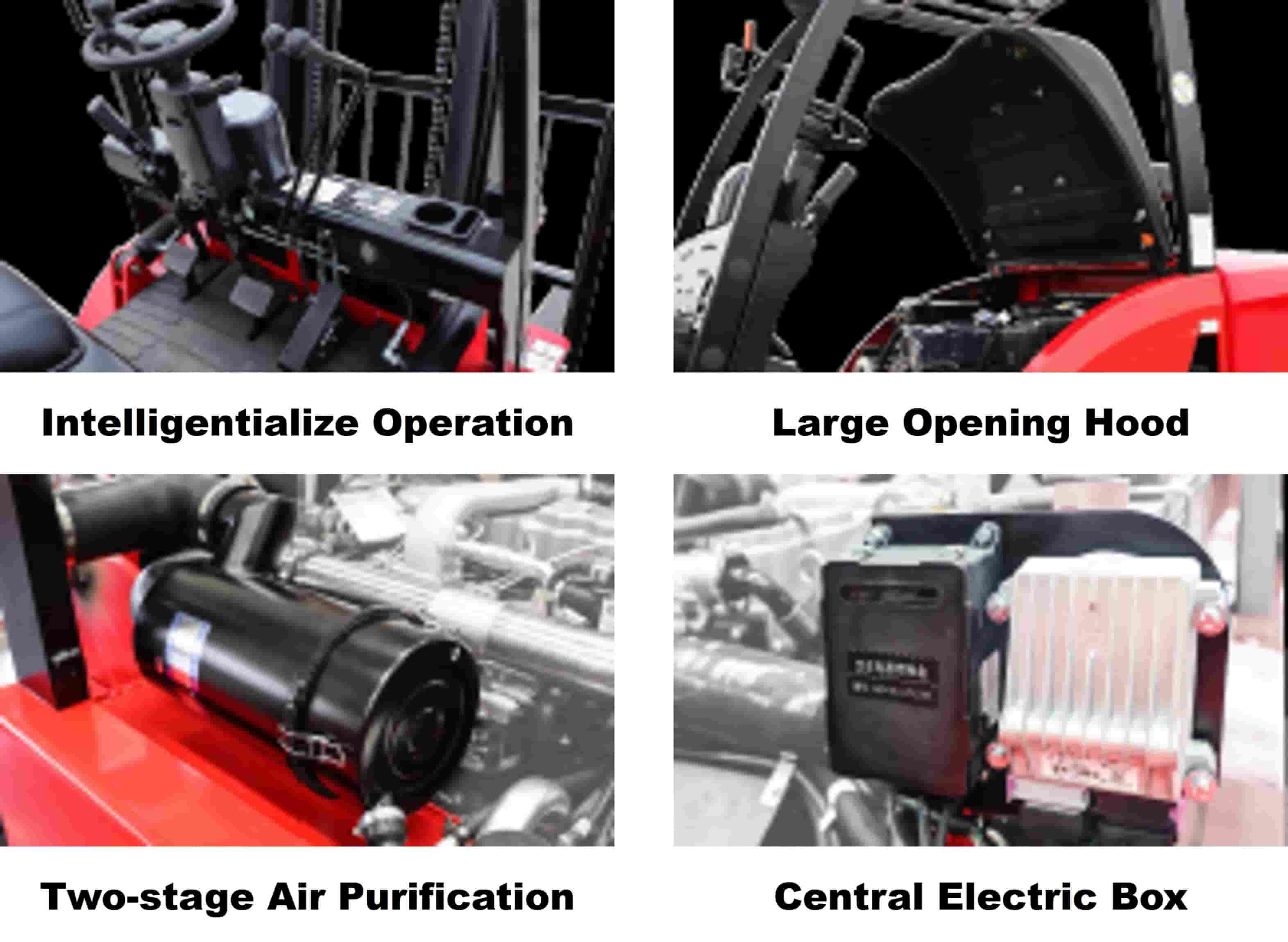

5) According to the advanced ergonomic design, integrated control valve type operating handle, electrical switches centralized layout, fast and convenient manipulation.

6) Optimize the layout of the engine room, the battery, oil pump motor, electrical components, hydraulic fuel tank are all in the engine room, the hood opening Angle is large, daily maintenance is more convenient.

7) Iron air filter and intake high independent channel two-stage air purification design makes the diesel fuel burn more fully and extends the engine life.

8) Electrical wiring integrated design, fuses and relays centralized in the electrical box. Spare fuse is inside the hood, with waterproof and dustproof effect, reliable plugging and convenient maintenance.

FAQ

1) What is terms of payment?

T/T, 30% deposit, 70% balance paid before shipment.

2) What is the inspection method?

Product photos, packaging, videos, and any other inspection methods required by customers.

3) How is the product packaged?

Naked, packaging film, wooden box, iron frame, and other required packaging methods.

4) How long is the warranty period?

18 months. Spare parts are provided free of charge during the warranty period.

Operation Video

Technical Parameter

Model				FD20	FD25	FD30	FD35
Power Type				Diesel	Diesel	Diesel	Diesel
Operation Type				Seated	Seated	Seated	Seated
Rated Capacity			kg	2000	2500	3000	3500
Load Center			mm	500	500	500	500
Lifting Height			mm	3000	3000	3000	3000
Free Lift Height			mm	130	130	145	150
Size Of Fork		LxWxT	mm	1070x122x40	1070x122x40	1070x122x45	1070x125x50
Tire Type				Pneumatic	Pneumatic	Pneumatic	Pneumatic
Size Of Tire		Front		7.00-12-12PR	7.00-12-12PR	28x9-15-14PR	28x9-15-14PR
Size Of Tire		Rear		6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
Mast Tilt		Front/Rear	°	6/12	6/12	6/12	6/12
Overal Length (Without Fork)			mm	2500	2540	2750	2755
Overal Width			mm	1165	1165	1225	1225
Mast Closed Height			mm	2000	2000	2070	2180
Mast Extended Height			mm	4000	4000	4100	4100
Overhead Guard Height			mm	2070	2070	2150	2150
Turning Radius			mm	2190	2240	2515	2515
Front/Rear Overhang			mm	455/408	455/408	480/570	485/570
Minimum Right Angle Channel Width			mm	2230	2280	2545	2545
Wheelbase			mm	1600	1600	1760	1760
Wheel Distance		Front	mm	970	970	1000	1000
Wheel Distance		Rear	mm	970	970	970	970
Min.Ground Clearance			mm	115	115	130	130
Speed	Travel	Load	Km/h	17	17	18	18
	Travel	Without load	Km/h	19.5	19.5	19.5	19.5
	Lift	Load	mm/s	570	570	450	380
	Lift	Without load	mm/s	600	600	500	450
	Fall	Load	mm/s	550	550	500	460
	Fall	Without load	mm/s	450	450	450	420
Max.traction			KN	16	16.5	20	20
Max.gradeability		Load/Without Load	%	15/20	15/20	15/20	15/20
Weight			kg	3320	3680	4230	4650
Battery	Voltage/Capacity		V/AH	12/100	12/100	12/100	12/100
Engine	Model			Xinchai4D27G31	Xinchai4D27G31	Xinchai4D27G31	Xinchai4D27G31
	Rated Power/Speed		kW/rpm	36.8/2500	36.8/2500	36.8/2500	36.8/2500
	Max.torque/Speed		N.m/rp	157/1800	157/1800	157/1800	157/1800
	Number Of Cylinders			4	4	4	4
	Displacement			2.85	2.85	2.85	2.85
